The Advantages of Grid Structure: A Comprehensive Overview

Grid structure, as a widely used spatial structural system in modern architecture, has won extensive recognition in both public and industrial construction fields due to its unique advantages. Its superiority is not only reflected in flexible structural composition and reliable node connections but also in mature design methods supported by advanced technology, making it an indispensable choice for complex and large-span architectural projects.

1. Flexible, Regular, and Highly Adaptable Structural Composition

The most prominent advantage of grid structure lies in its flexible yet regular structural composition, which enables it to easily meet diverse architectural needs. Unlike traditional rigid structural systems that are limited by fixed forms, grid structure has a variety of types—there are even ten to twenty common structural forms, such as square pyramid grid, triangular pyramid grid, and prism grid. Each type follows strict geometric regularity, with members arranged in an orderly manner according to specific mathematical rules. This regularity not only makes the layout logic easy for designers to master but also simplifies the preliminary planning and scheme adjustment of architectural structures. For example, in the design of large public buildings like stadiums or exhibition halls, designers can quickly select the most suitable grid type based on the building’s plane shape and span requirements, without spending excessive time on solving irregular structural problems.

Moreover, the spatial characteristics of grid structure provide additional convenience for architectural functional layout. The space within the height of the grid (i.e., the area between the upper and lower grid layers) can be fully utilized to install pipelines, such as water supply and drainage pipes, air conditioning ducts, and electrical cables. This not only avoids the need for independent suspended ceilings to hide pipelines—reducing the overall height of the building and saving construction materials—but also makes later maintenance and replacement of pipelines easier, as the grid structure provides a clear and accessible operation space.

In terms of architectural aesthetics, grid structure also performs exceptionally well. Exposed or partially exposed grid structures, with their neat geometric lines and three-dimensional spatial sense, can become a unique decorative element of the building. For instance, the roof of the National Centre for the Performing Arts in China uses a curved grid structure; the interweaving steel members not only bear the structural load but also form a "giant eggshell" shape, creating a strong visual impact and enhancing the artistic expression of the building. Additionally, grid structure can adapt to various support conditions (such as column support, wall support, and cantilever support) and building plane shapes (including rectangles, circles, polygons, and irregular shapes). Whether it is a rectangular industrial plant or a circular concert hall, grid structure can be perfectly matched, making it highly favored by designers in different architectural fields.

2. Simple, Reliable, and Industrialized Node Connections

Node connections are the core part of grid structure, as they bear and transfer the forces between members, and their performance directly affects the overall stability of the structure. In recent years, with the development of construction industrialization, grid nodes and their components have gradually realized standardization, industrialization, and commercialization—this is another key advantage of grid structure.

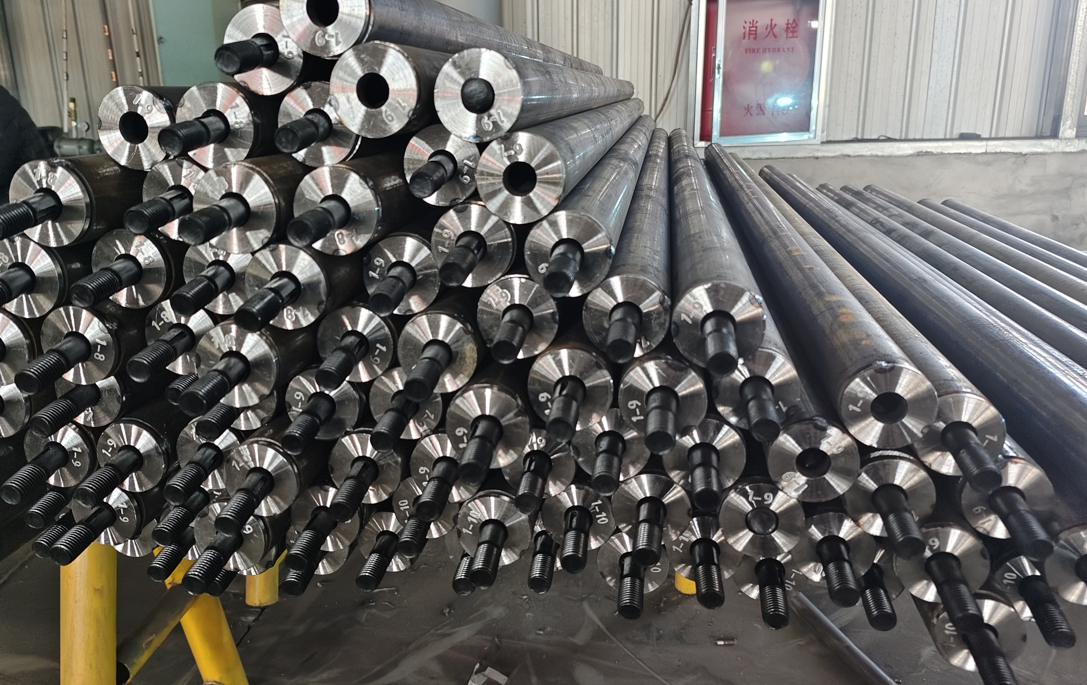

First, standardization means that node types, sizes, and connection methods are unified according to national or industry standards. For example, common grid nodes such as bolted ball nodes and welded hollow spherical nodes have fixed design specifications. Manufacturers can produce nodes in batches according to these standards, avoiding the need for custom processing of each node and greatly reducing production costs and time. Industrialization, on the other hand, relies on advanced processing equipment (such as CNC machine tools and automatic welding robots) to produce nodes. This not only ensures the precision of node dimensions (the error can be controlled within a few millimeters) but also improves the quality stability of nodes—avoiding quality defects caused by manual operation, such as uneven welding seams or inaccurate bolt holes.

Commercialization further promotes the application of grid structure. At present, there are many professional manufacturers in the market that specialize in producing grid nodes and components. Designers and construction units can directly purchase standardized nodes from the market, instead of establishing independent production lines. This not only simplifies the supply chain of construction projects but also ensures the reliability of node quality—since commercial nodes have undergone strict quality inspection before leaving the factory, including mechanical property tests and corrosion resistance tests. The simplicity and reliability of node connections not only reduce the difficulty of on-site installation (workers only need to assemble nodes and members according to the design drawings) but also enhance the overall safety of the structure, providing a solid guarantee for the long-term use of buildings.

3. Mature Analysis and Calculation Supported by Computer-Aided Design

The maturity of analysis and calculation methods is an important guarantee for the wide application of grid structure, and the adoption of computer-aided design (CAD) has further promoted the development of this advantage.

From the perspective of member design, the members of grid structure are mostly steel members (such as seamless steel pipes and angle steels), which mainly bear axial forces (tension or compression). Compared with members bearing bending moments or shear forces, the mechanical behavior of axial force members is simpler and more stable. In structural mechanics theory, the design methods for axial force members (such as strength calculation and stability check) are very mature—designers can directly use established formulas and standards to determine the cross-sectional size and material grade of members, avoiding complex theoretical derivations.

For the analysis and calculation of the entire grid structural system, the development of computational structural mechanics has made this work highly reliable. In the early days of grid structure application, manual calculation was not only time-consuming but also prone to errors, especially for large-span or irregular grid structures. However, with the popularization of computers, various universal calculation programs and professional CAD software for grid structures have emerged in China, such as PKPM, 3D3S, and SAP2000. These software can simulate the mechanical behavior of grid structures under various working conditions (such as dead load, live load, wind load, and earthquake load) through three-dimensional modeling. They can automatically calculate the internal force of each member, check the strength and stability of members and nodes, and even optimize the structural layout—greatly improving the accuracy and efficiency of design.

For example, when designing a large-span stadium roof with a grid structure, designers can use 3D3S software to establish a detailed three-dimensional model of the grid. The software will quickly calculate the internal force distribution of each steel pipe under different loads, and mark the members that do not meet the design requirements. Designers can then adjust the cross-sectional size of these members in a timely manner, without redoing the entire calculation manually. This not only shortens the design cycle (reducing the design time of a large project from several months to several weeks) but also ensures the rationality and safety of the design, laying a solid foundation for the smooth progress of the subsequent construction.

In summary, the grid structure has become a leading structural system in modern architecture due to its flexible and regular structural composition, simple and reliable node connections, and mature computer-aided design methods. With the continuous advancement of construction technology and materials science, its advantages will be further exerted, and it will play a more important role in more complex and innovative architectural projects.
