Product Overview

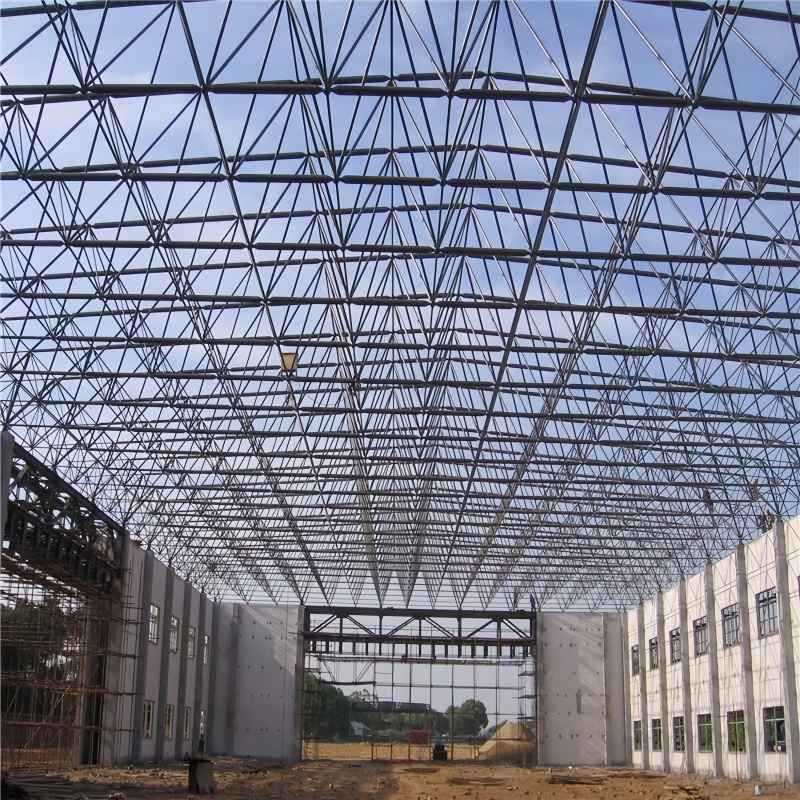

A Large Span Space Frame Roof is a highly efficient roofing system designed to cover extensive areas while minimizing the need for interior support columns.
The three-dimensional space frame structure distributes loads in multiple directions, providing exceptional strength, stability, and structural efficiency.
Compared with conventional steel roof systems, space frame roofs offer longer spans, lighter structural weight, greater architectural flexibility, and improved overall performance for large-scale projects.
This solution is widely used in public infrastructure, transportation facilities, and landmark architectural developments worldwide.
Specifications & Parameters
| Category | Specifications / Parameters |
|---|---|
| Structure Type | Space Frame Roof Structure |
| Span Range | 40m – 200m+ (Customizable) |
| Covered Area | Customized per client requirements |
| Member Material | Q235B / Q355B Steel Tubes |

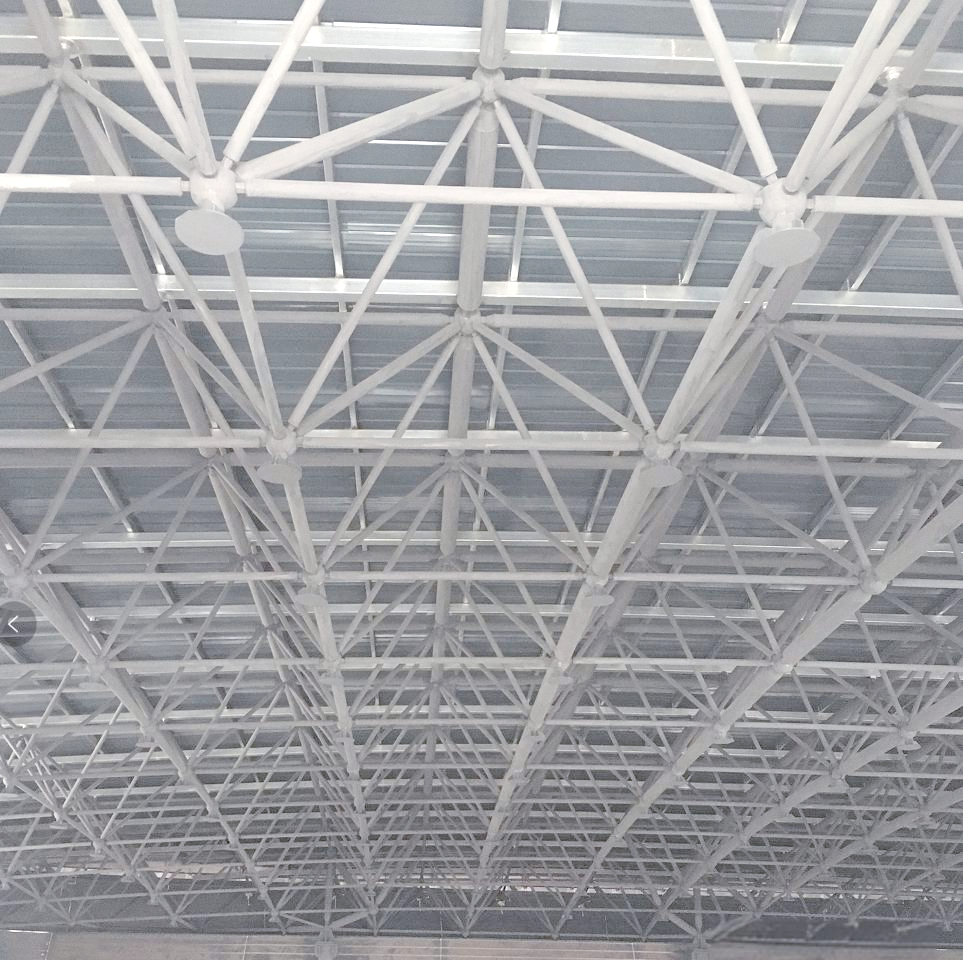

| Node Type | Bolted Ball Joints or Welded Ball Joints |
| Support Type | Perimeter Support, Multi-Point Support, or Hybrid Support |
| Roofing System | Metal Roofing Panels, Aluminum-Magnesium-Manganese Panels, Skylight Panels, or ETFE Membrane Systems |
| Surface Treatment | Painting, Hot-Dip Galvanizing, or Fluorocarbon Coating |
| Design Standards | In accordance with international and local building codes |
| Seismic Design | Engineered according to project requirements |
| Design Service Life | ≥ 50 Years |
Product Features
Exceptional Long-Span Capability
Creates large unobstructed spaces with minimal structural supports.
Superior Structural Stability
Three-dimensional load transfer improves safety and performance.
Lightweight Roofing Solution
Reduces overall structural and foundation costs.
Flexible Architectural Design
Supports flat, curved, arched, and custom roof geometries.
Suitable for Challenging Environments
Designed for high wind, heavy snow, and seismic conditions.
Efficient Construction Process
Prefabricated components enable fast on-site installation.
Applications
•International Exhibition Centers
• Airport Terminal Roof Structures
• Indoor Sports Arenas
• Railway Station Buildings
• Aquatic Sports Centers
• Integrated Transportation Hubs
• Convention and Conference Centers
• Public Event Facilities
• Cruise Terminal Buildings
• Cultural and Performing Arts Venues
Frequently Asked Questions (FAQ)
Q: What span range is suitable for a large span space frame roof?
A: The system is commonly used for spans above 40 meters and can exceed 200 meters depending on project requirements.
Q: Can the roof be designed without interior columns?
A: Yes. Most projects can achieve large column-free spaces through optimized structural design.
Q: What roofing materials can be used?
A: Options include metal roofing panels, aluminum-magnesium-manganese systems, skylight panels, and ETFE membrane roofing.
Q: Is the system suitable for harsh environmental conditions?
A: Yes. It can be engineered to withstand local wind, snow, and seismic loads.
Q: Can custom roof shapes be developed?
A: Absolutely. We provide customized architectural and structural solutions for unique project requirements.
Q: What is the warranty period?
A: 2 years.
Q: What are the payment terms?
A: FOB.
