Large Span Steel Structure Workshop Inquiry
Please provide your project location, required building span, production process requirements, equipment layout, insulation specifications, ventilation requirements, and local building code information.
Our engineering team will develop a customized large-span steel workshop solution and provide complete services including engineering design, fabrication, logistics, and installation guidance.
Contact us today for a free technical proposal and quotation.
- Overview
- Recommended Products
Product Overview

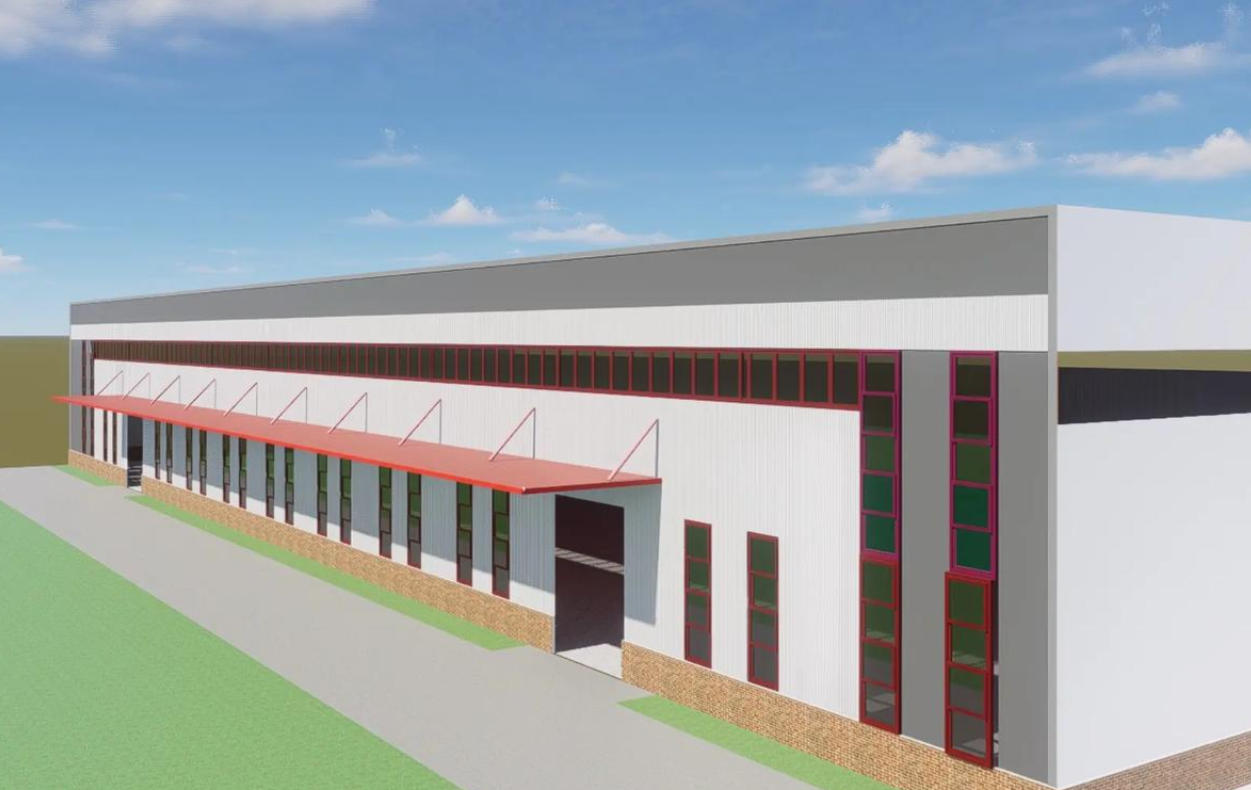

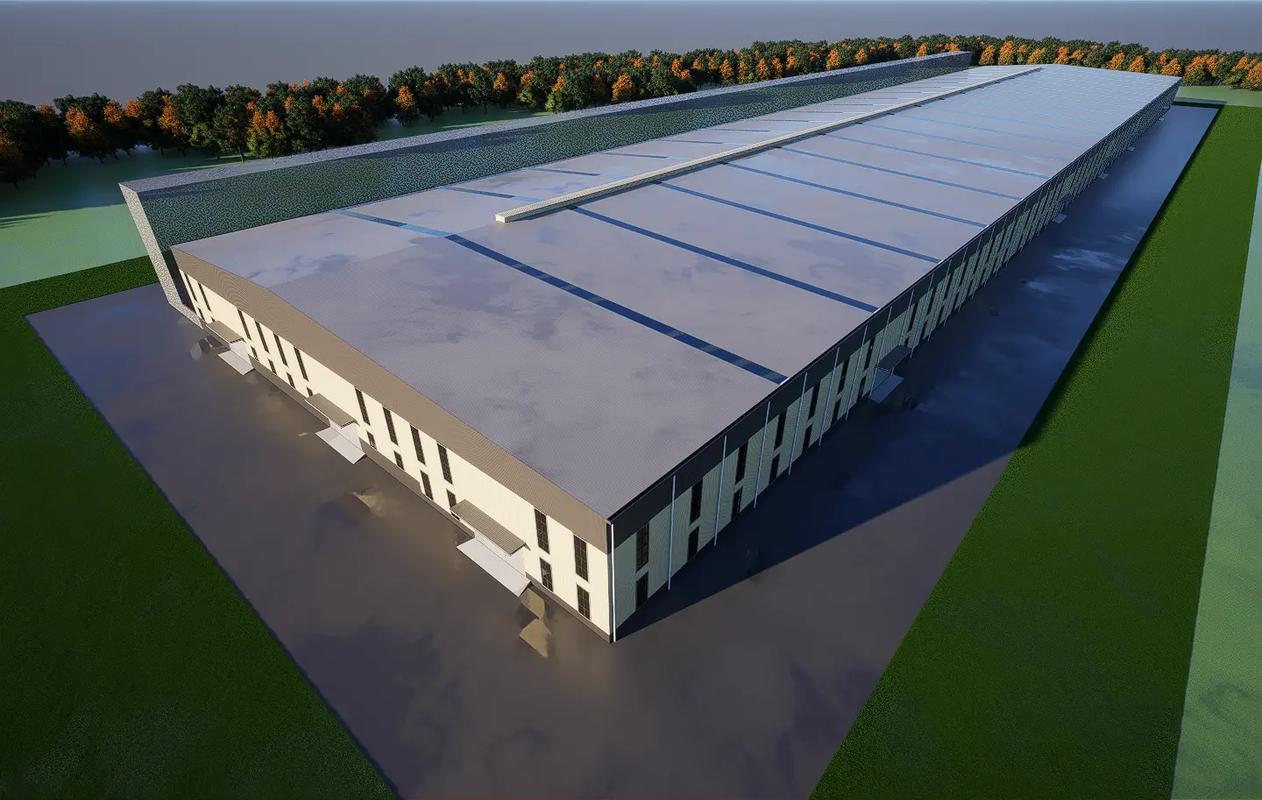

A Large Span Steel Structure Workshop is specifically designed for modern manufacturing facilities and industrial environments that require expansive open floor space.
By utilizing optimized steel framing systems, these workshops provide large clear-span interiors with minimal or no interior columns, allowing flexible layouts for automated production lines, assembly operations, logistics routes, and heavy equipment installation.
Compared with conventional concrete buildings, large-span steel workshops offer faster construction, reduced structural weight, higher space utilization, and easier future expansion.
The building can be customized according to operational requirements and engineered to comply with international building standards.
Specifications & Parameters
| Parameter Name | Specification |
|---|---|
| Building Width | 30m–180m+ |
| Building Length | Customized |
| Building Height | 8m–30m+ |
| Steel Grade | Q235B / Q355B Structural Steel |

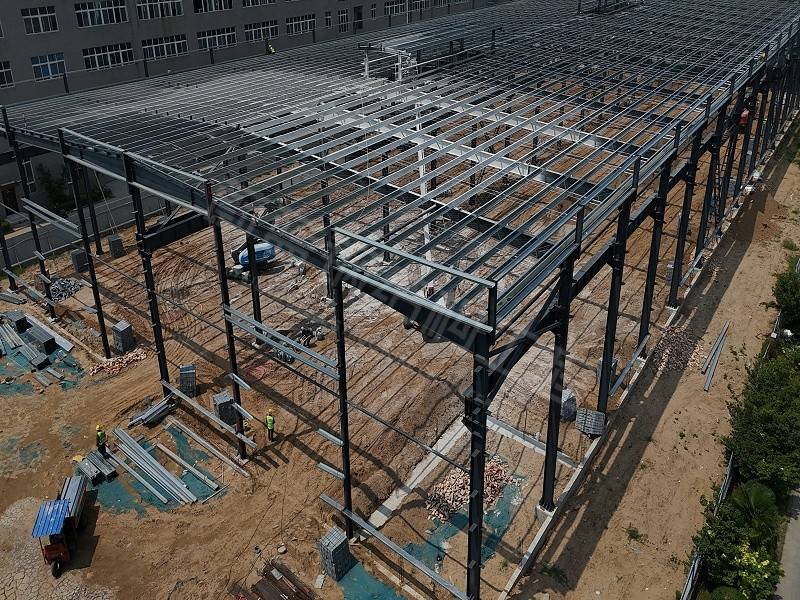

| Structure Type | Large Span Portal Frame Structure |
| Columns | Welded H-Section Steel Columns |
| Beams | Tapered H-Section Steel Beams |
| Purlins | Hot-Dip Galvanized C/Z Purlins |
| Roof System | Steel Roofing Sheets or Insulated Sandwich Panels |
| Wall System | Steel Cladding or Insulated Wall Panels |
| Daylighting System | FRP Skylights or Continuous Roof Monitors |
| Ventilation System | Natural or Mechanical Ventilation |
| Surface Treatment | Sandblasting and Protective Coating |
| Service Life | More Than 50 Years |
Product Features

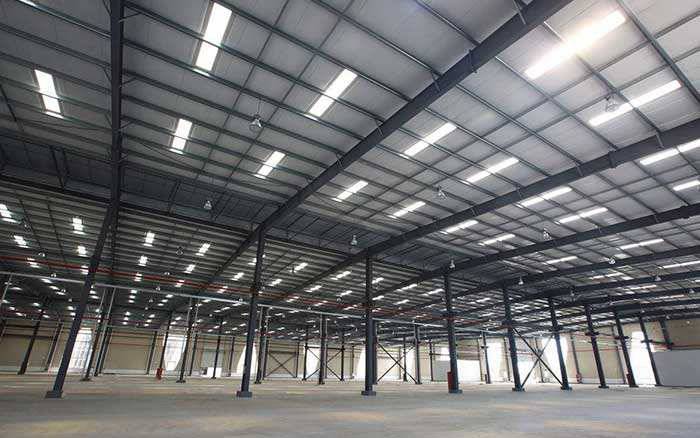

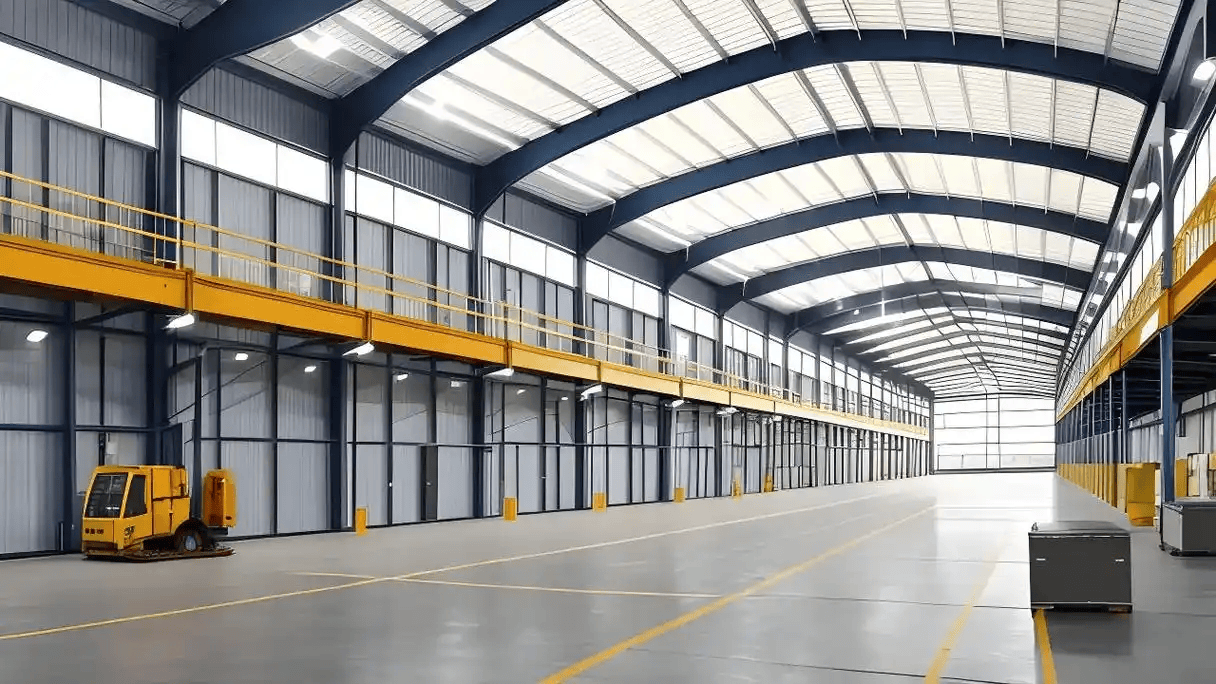

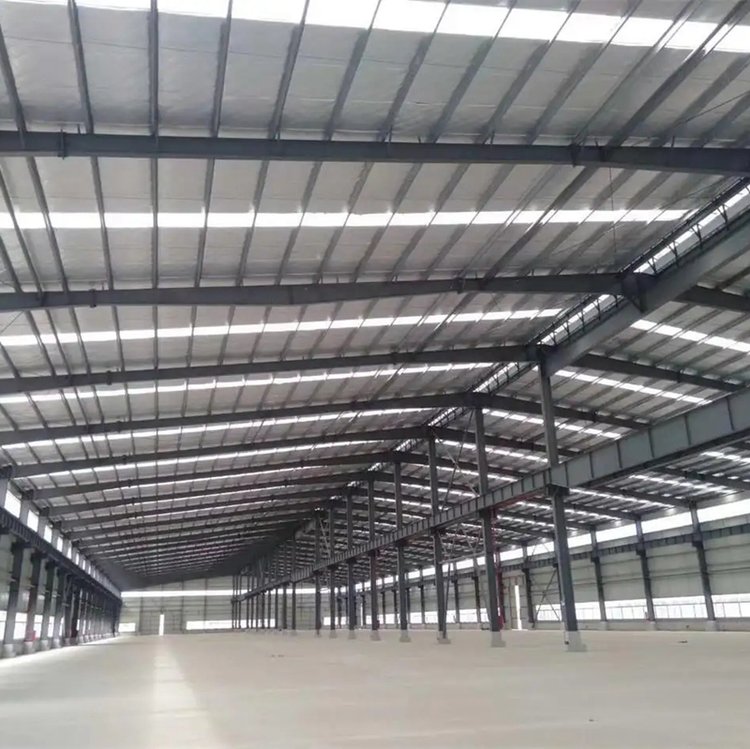

Large Clear-Span Interior Space
Minimizes interior columns and maximizes operational flexibility.
Improved Workflow Efficiency
Enhances material handling routes and production flow management.
Automation-Compatible Design
Ideal for automated manufacturing systems and advanced production equipment.
Rapid Construction
Factory-fabricated steel components significantly reduce project timelines.
Excellent Structural Performance
Designed to withstand wind, snow, and seismic loads.
Future Expansion Capability
Allows seamless expansion as production capacity grows.
Applications
• Automated Manufacturing Workshops
• Large Equipment Assembly Facilities
• Industrial Production Workshops
• Precision Manufacturing Plants
• Metal Fabrication Centers
• Renewable Energy Equipment Facilities
• Engineering Equipment Assembly Workshops
• Robotics Manufacturing Plants
• Aerospace Equipment Production Facilities
• Smart Manufacturing Centers
Frequently Asked Questions (FAQ)
Q: What is a large-span steel workshop?
A: It is a steel building designed with minimal or no interior columns to maximize usable floor space.
Q: What is the maximum span available?
A: Large-span workshop buildings can be engineered with spans exceeding 150 meters.
Q: Is it suitable for automated production lines?
A: Yes. Large open spaces are ideal for automation systems and advanced manufacturing equipment.
Q: Are insulated building systems available?
A: Yes. Various insulation options are available according to climate conditions.
Q: Do you support international projects?
A: Yes. We provide customized engineering solutions worldwide.
Q: What is the warranty period?
A: 2 years.
Q: What are the payment terms?
A: FOB.
